Tricone Bits are widely used in Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work.
Soft formation TCI tricone bits: The soft formation TCI tricone bits are used to drill low compressive strength, very soft formations. This bit maximized to use of both conical and chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in sticky formations.
Medium formation TCI tricone bits: The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability. Hard formation TCI tricone bits: The hard formation TCI tricone bits can be used to drill hard and abrasive formations. Wear resistance tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of hemispherical shaped inserts are used in all rows to provide cutter durability and long life.
If you need, please contact us without hesitation, we will give you a satisfactory answer within 24 hours.
Oil and Gas Exploration:
Roller cone bits are extensively used in drilling petroleum and natural gas wells. They excel in crushing and fracturing diverse rock types—from soft shale and sandstone to hard limestone and dolomite—enabling efficient wellbore creation for extraction and production.
Mining and Mineral Exploration:
These bits facilitate core sampling and blast hole drilling in mining operations. They are ideal for excavating mineral deposits, coal seams, and ore bodies, providing precise cutting performance in both surface and underground mining environments.
Geotechnical and Water Well Drilling:
In geotechnical engineering and hydrogeology, roller cone bits help construct water wells, monitoring wells, and foundation boreholes. Their ability to handle unconsolidated sediments, clay, and mixed rock layers ensures reliable performance in aquifer exploration and civil engineering projects.
Geothermal Energy Development:
For geothermal drilling, roller cone bits penetrate high-temperature rock formations to access underground heat sources. Their durability under thermal and mechanical stress supports sustainable energy infrastructure development.
Products Description
|

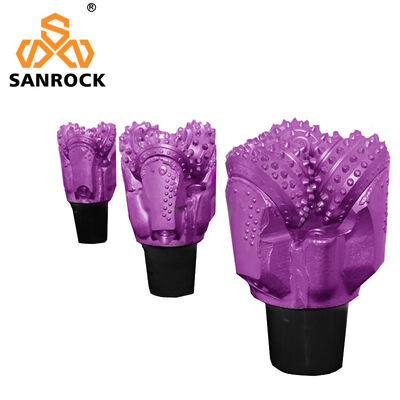

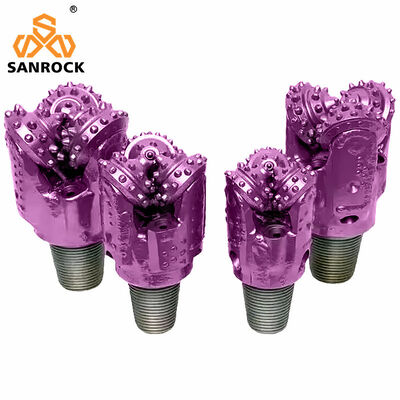

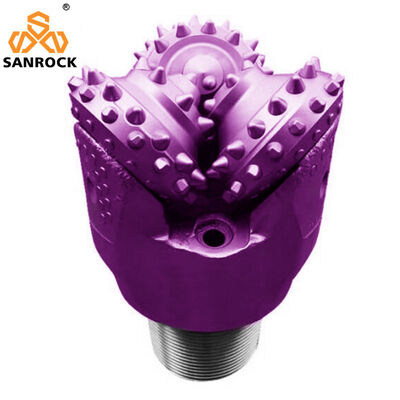

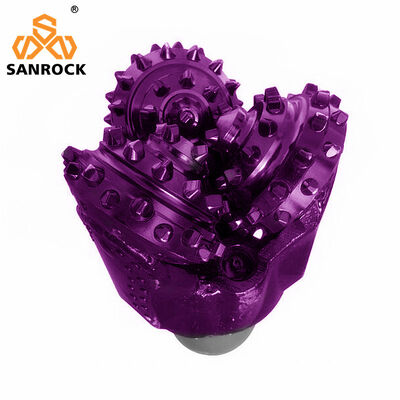

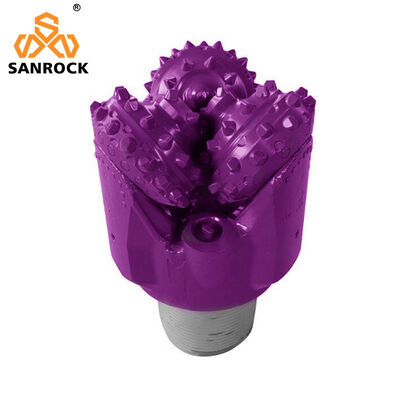

Product name:tricone drill bit
|
|
Size:6 1/4
|
|
Brand Name:Sanrock
|
|
Thread type:3 1/2" API
|
|
Usage:Water well, Oil Well,Coal Mining
|
|
Bearing:open/sealed bearing, rubber/metel seal bearing
|
|
Formation:sticky, soft, medium hard, hard formations
|
|
Application:oil field, water well, geothermal, underground foundation, quarry
|
|
Type:Tricone Bit (3 7/8"~26", steel/milling tooth or TCI)
|
|
Feature:
1. Drill Bit Connection made according to API standard.
2. We can adjust the bit size according to your rig.
3.Proven cutting structures and bearing designs continue to deliver a high quality of performance and reliability.
4.Optimized hydraulics provide increased ROP by efficiently removing cuttings and ensuring engagement of new rock on every cutting structure rotation.
