Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig

1set / sets par mois
MOQ
negotiable
Prix
Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Nom du produit: Forage
nom: INSTALLATION DE FORAGE DE ROCHE
Application: Projet minier, charbon, minerai, puits d'eau
Fonctionnalité: Contrôle hydraulique, efficacité de forage légère à poids léger
Diamètre de forage: 50-80mm
Profondeur de forage: 35m
Modèle de tige: φ38mmx90 mm
Garantie: 6 mois
Force d'impact: ≥225J
Fréquence d'impact: ≥34 Hz
Couple de sortie de la tige de forage: ≥140NM
Dimensions du tunnel réalisable: 2,2 mx 2,2 m - 3,0 mx 3,0m
Consommation totale d'air: ≤225L / s
Angles de forage: 0-360 degrés
Service après-vente assuré: Assistance en ligne, support technique vidéo
Poids: 95 kg
Mettre en évidence:

Hydraulic DTH drilling machine 34HZ

,

Pneumatic borehole drilling rig

,

Surface drilling rig impact frequency
Informations de base
Lieu d'origine: Zhejiang, Chine
Nom de marque: SANROCK
Certification: CE ISO 9001:2015
Numéro de modèle: SR90
Conditions de paiement et expédition
Détails d'emballage: Emballage nu pour machines, emballage en bois pour pièces de rechange ou demande des clients.
Délai de livraison: 15-25 jours
Conditions de paiement: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement: 5000set / sets par mois
Description de produit

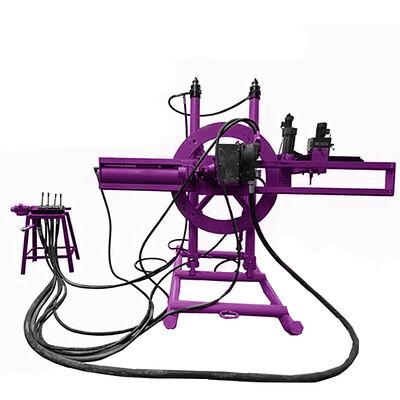

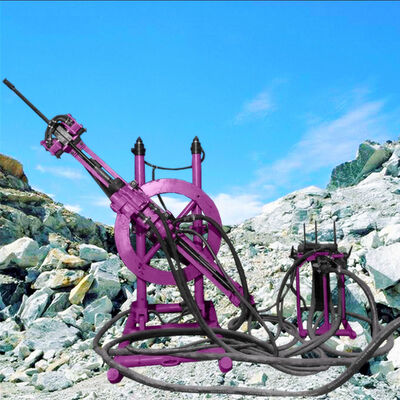

Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 0

Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 1
The sizes of different models of turntables are suitable for 2.2mx2.2m-2.7mx2.7m / 2.5mx2.5m-3.0mx3.0m

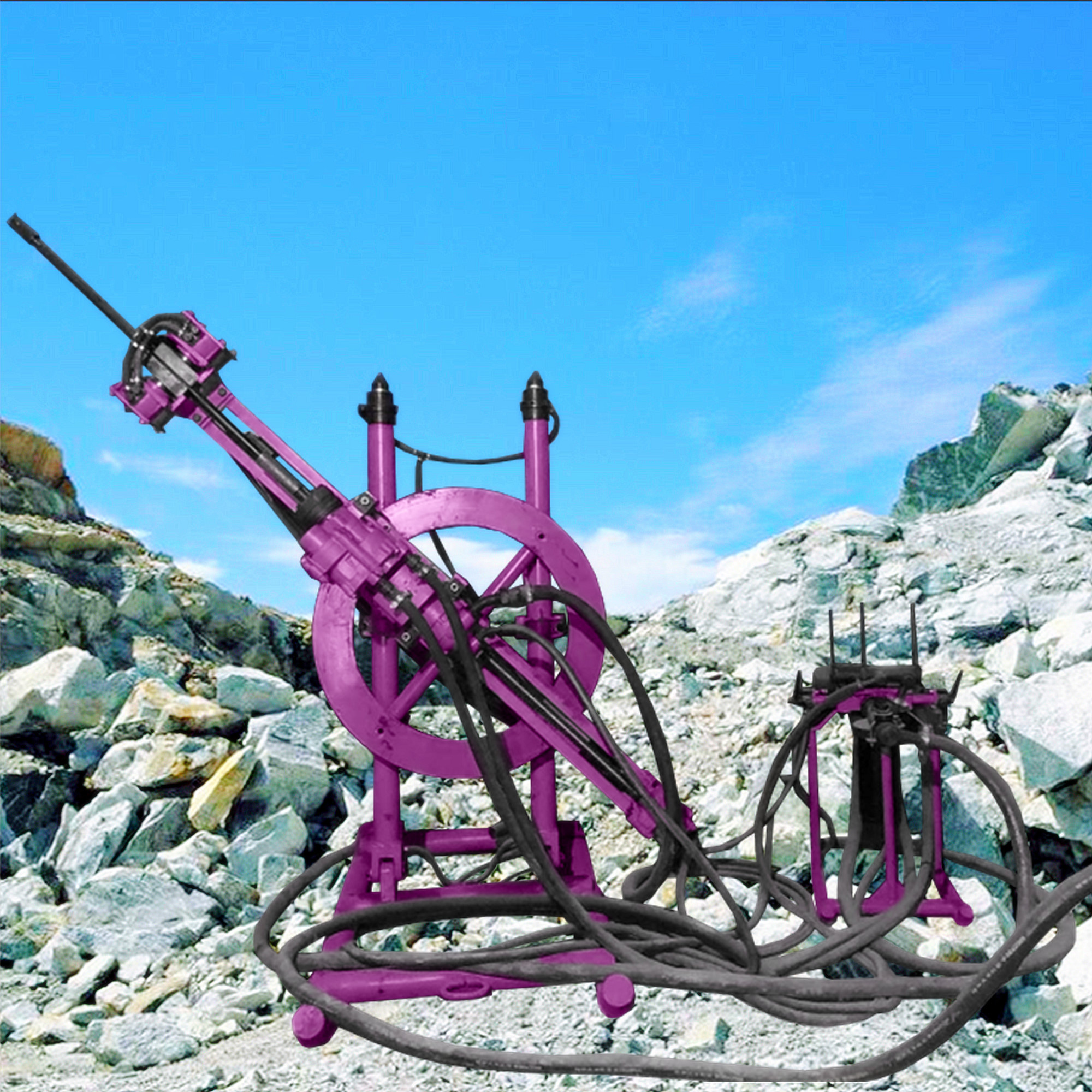

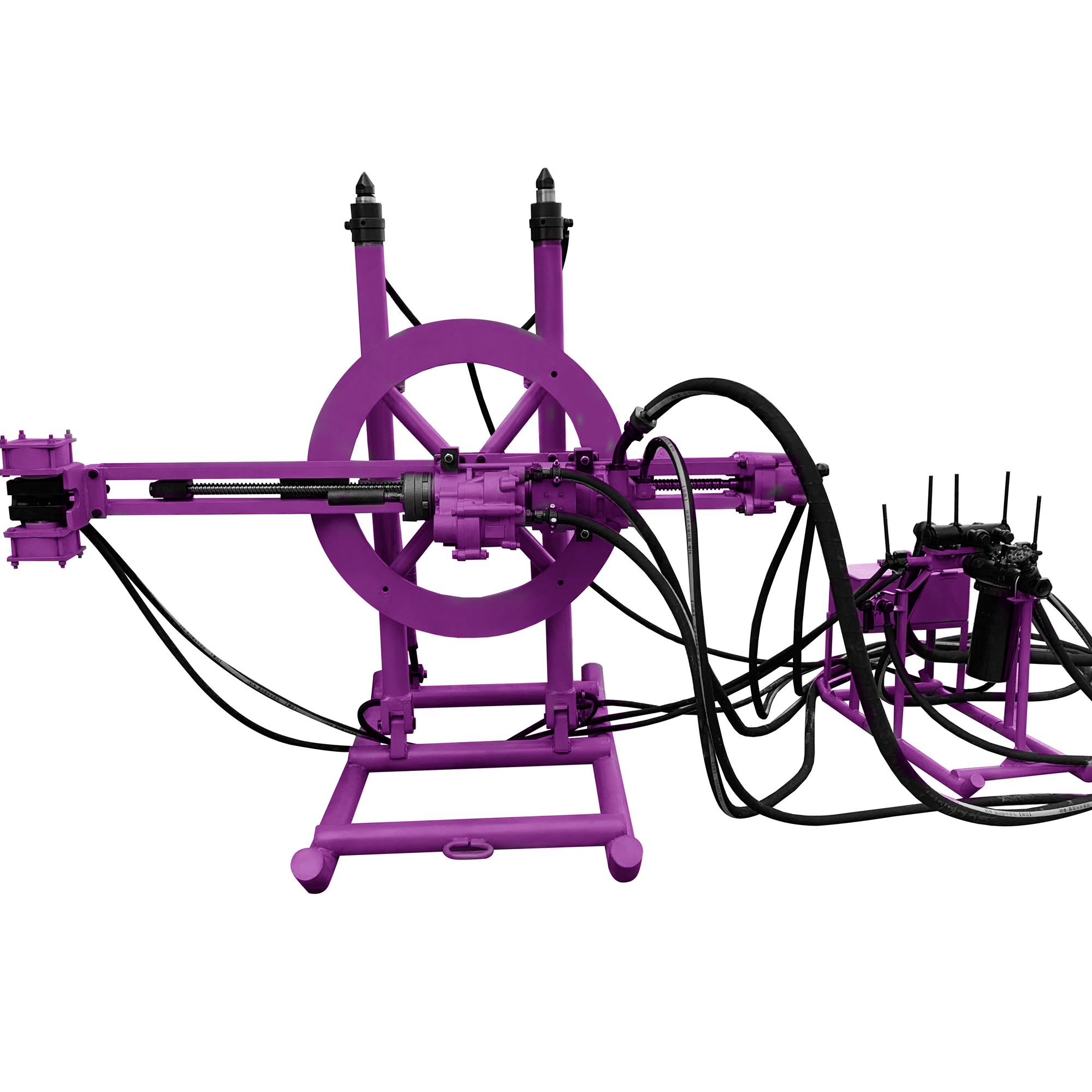

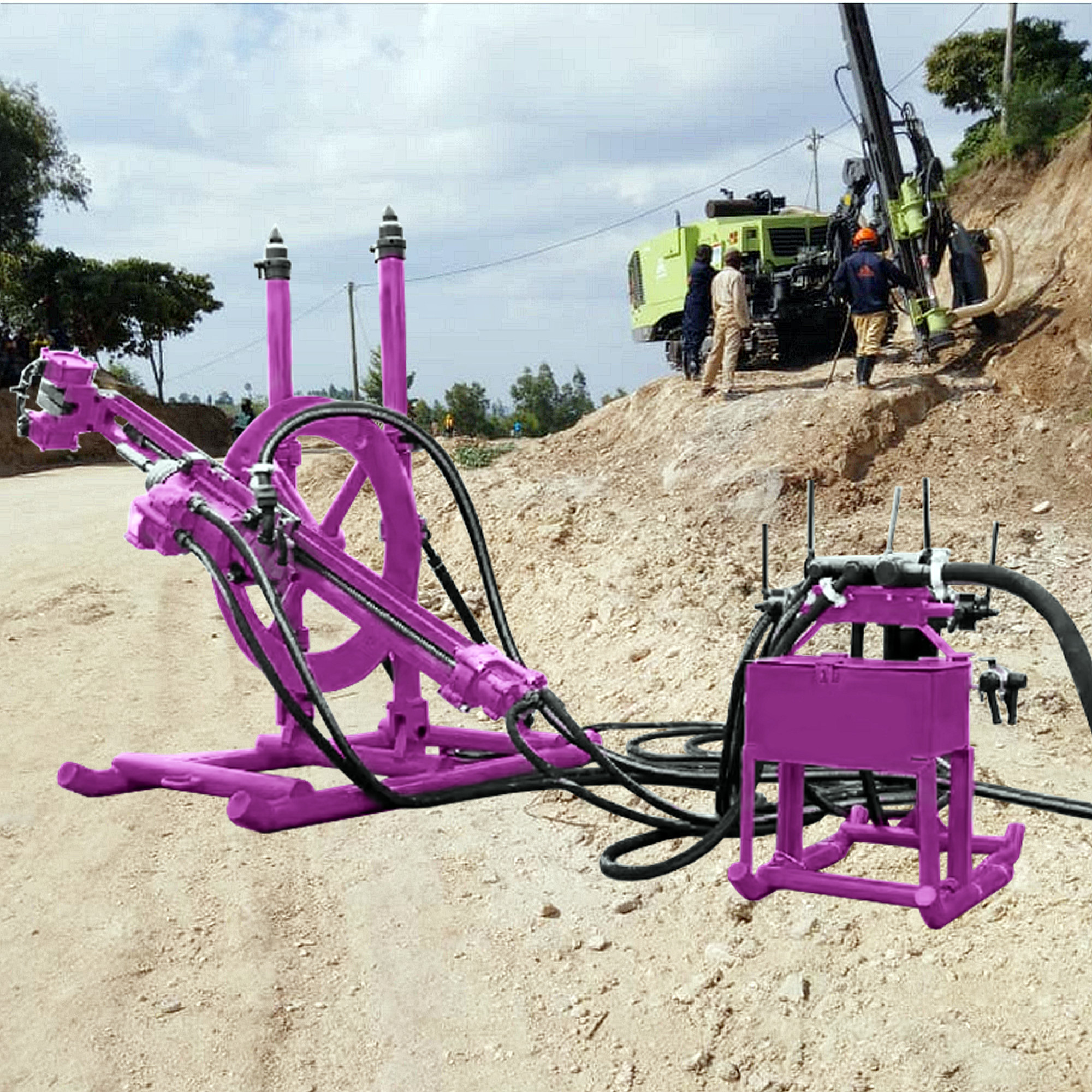

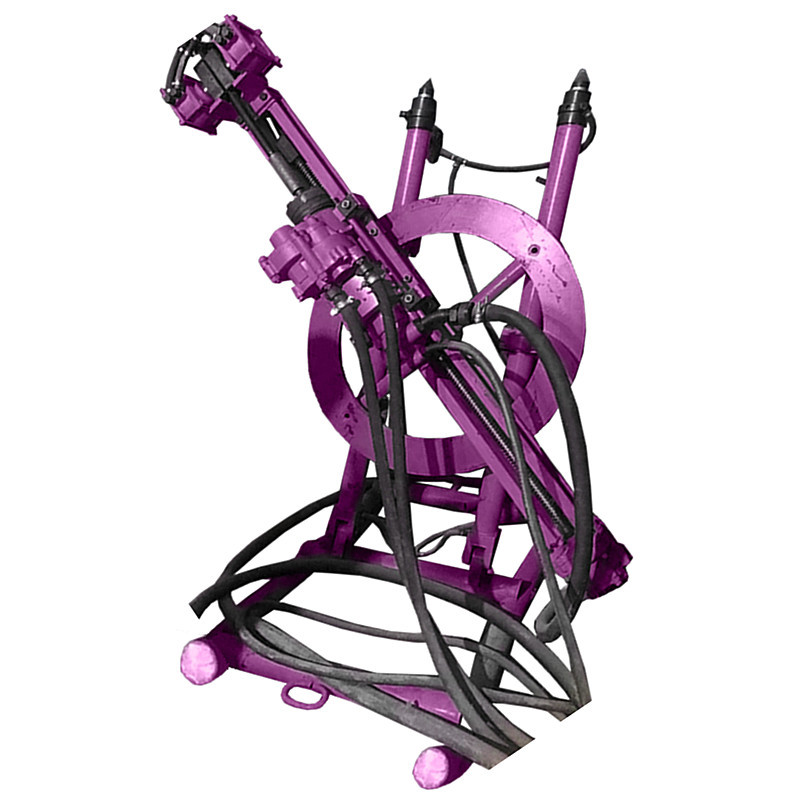

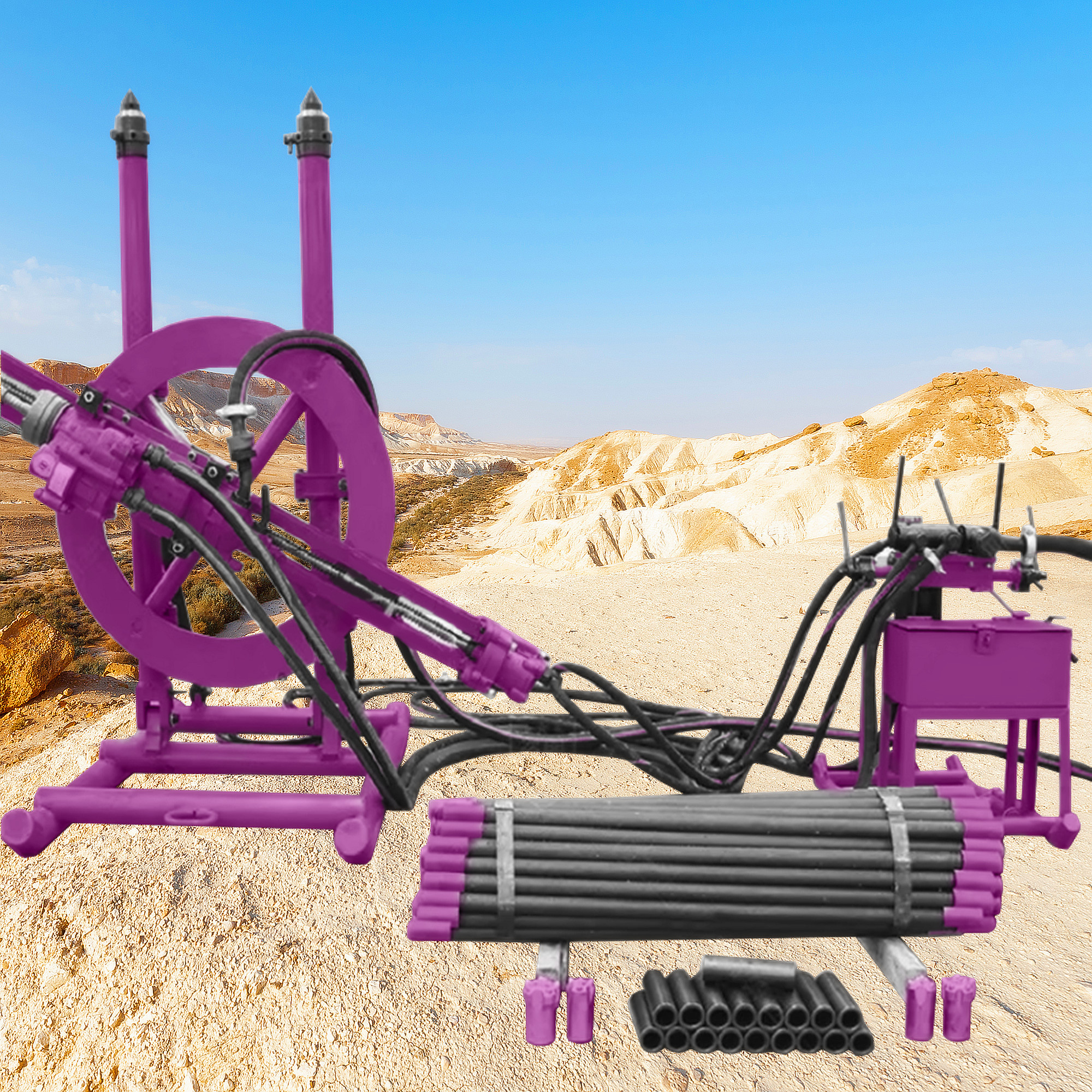

Tunnel Pneumatic DTH Drilling Rig This compact underground drilling machine is specifically engineered for

tunnel excavation and subterranean boring operations, utilizing compressed-air-powered DTH (Down-The-Hole)hammer technology for efficient rock fragmentation in confined spaces.

The rig features a low-profile design with 360° omnidirectional drilling capability, achieving precision boreholes

(Φ50-80mm) through granite and hard strata with minimal vibration transmission.

Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 2

Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 3Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 4Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 5

Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 6Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 7



Products Description

Type
Rotary Drilling Rig
Product name
Drilling Rig
Applicable
Building Energy ,Mining,borehole drilling rig
Parameters
Model SR90
Model SR150
Drilling Hole Diameter
50-80mm
80-140mm
Max. Drilling Hole Depth
35m
180m
Shank Model
φ38mmx90mm

Impact Force
≥225J
15000N
Impact Frequency
≥34HZ
60rpm
Output Torque of Drill Rod
≥140NM
1500-2000NM
Workable Tunnel Dimensions
2.2m x 2.2m - 3.0m x 3.0m
2.2m x 2.2m - 3.0m x 3.0m
Total Air Consumption
≤225L/s
120-350L/s
Drilling Angles
0-360 degrees
0-360 degrees
Mounted
No (Man Portable)
Two Wheels Trailer
Weight for Rocks Drilling Machine
95KG
450KG
Dimensions for Rocks Drilling Machine
890x360x305mm



Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 8Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 9

Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 10Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 11Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 12Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 13







Company Profile

Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 14

Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 15

Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig 15

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
