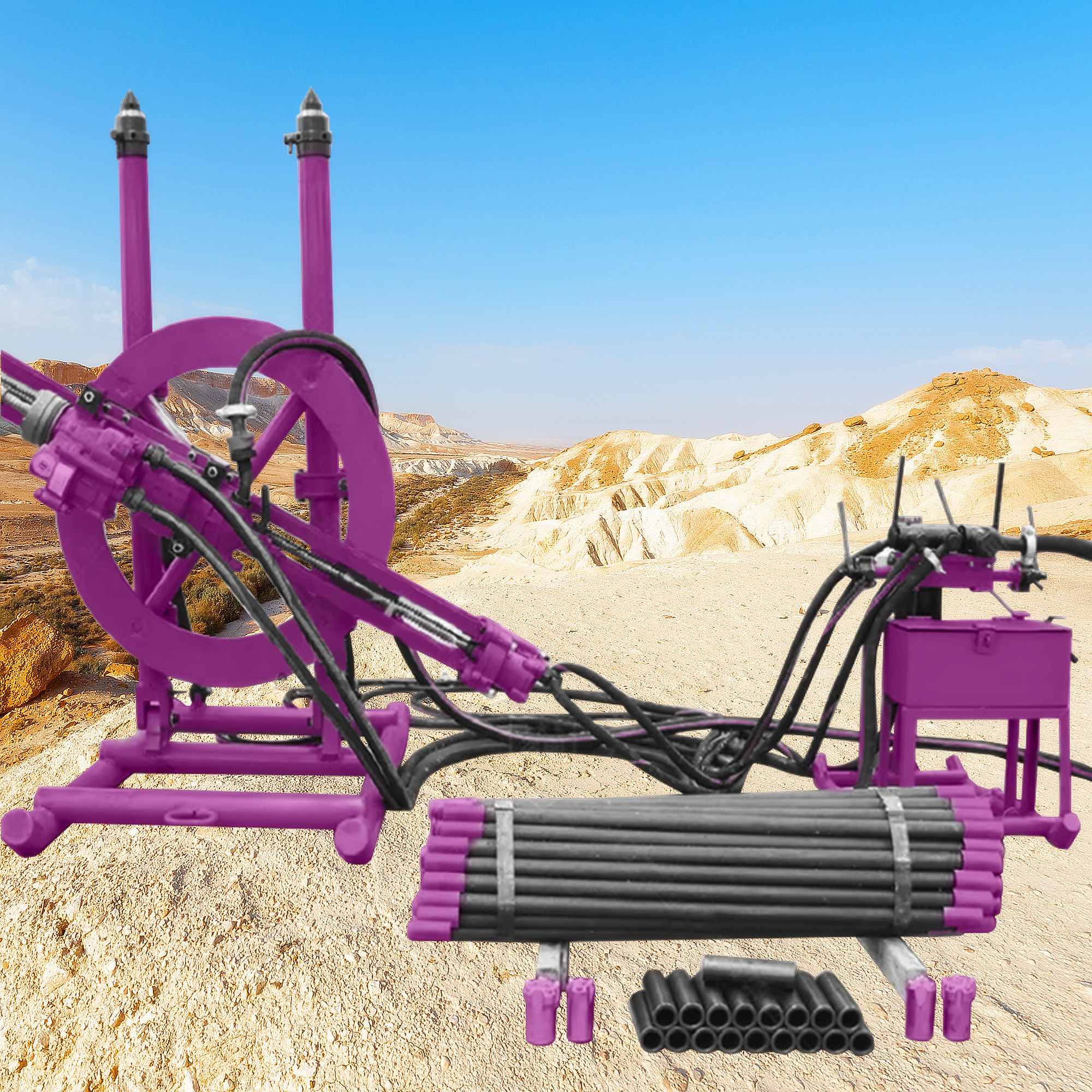

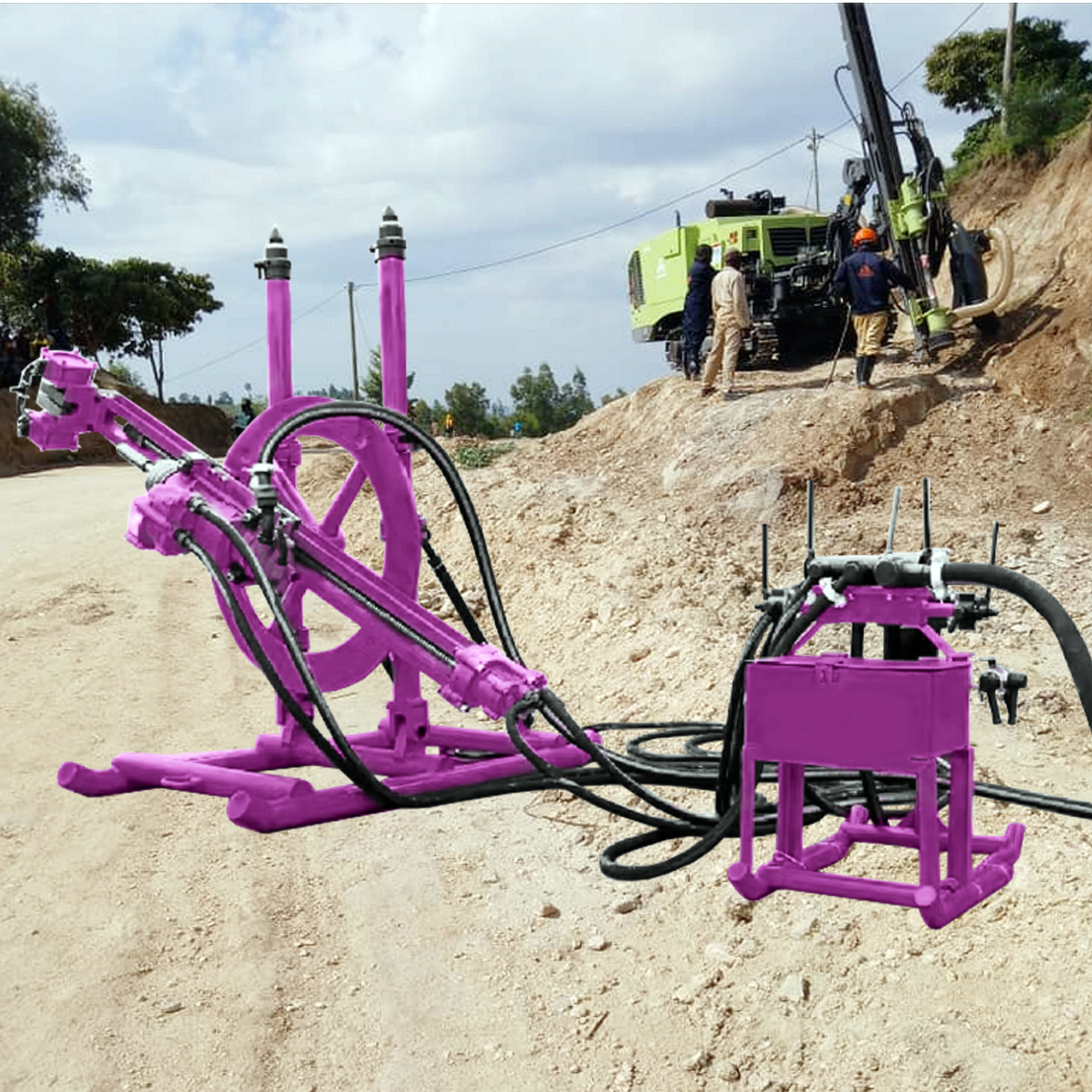

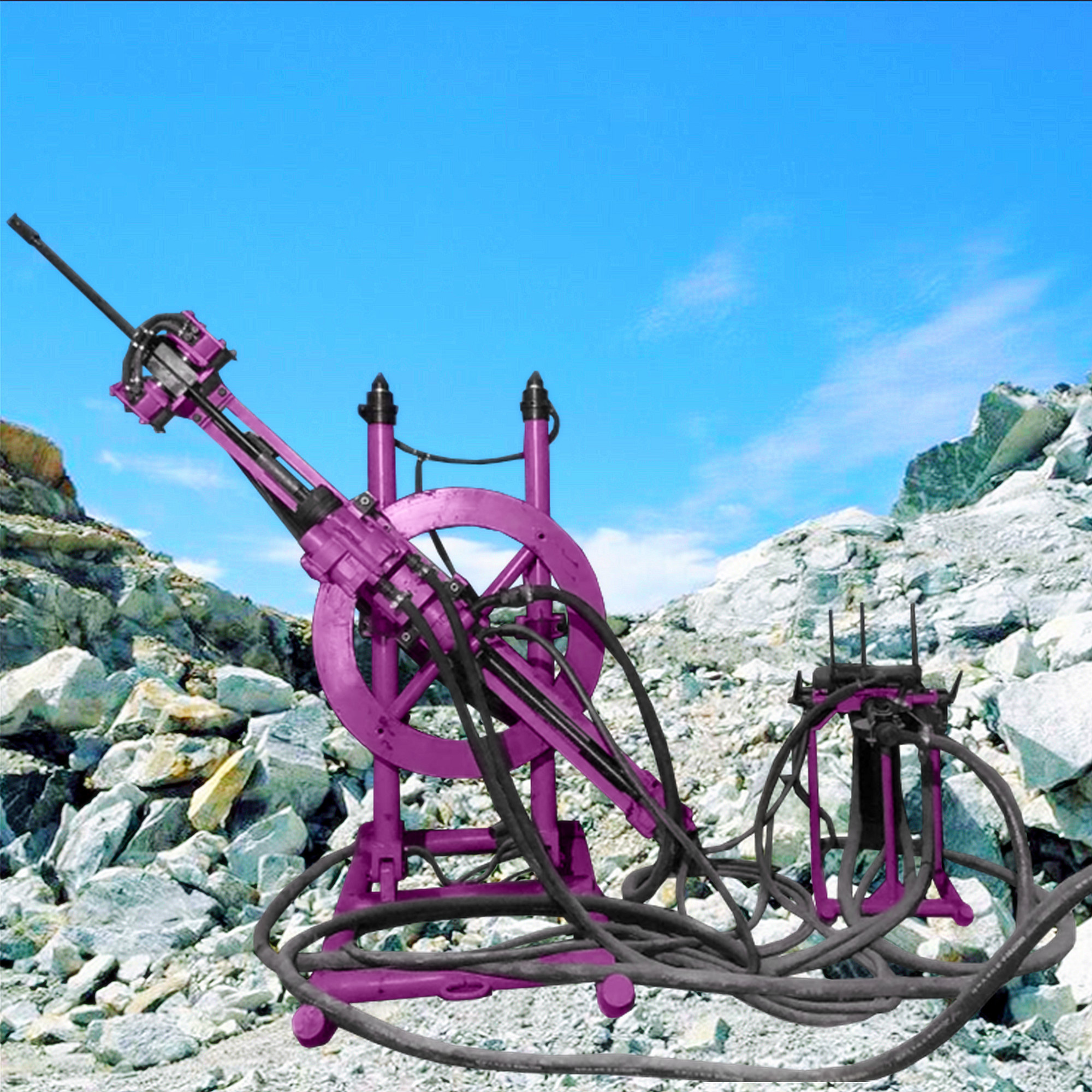

This robust drilling system integrates a heavy-duty disc-type rotation platform with
advanced DTH (Down-The-Hole) hammer technology, engineered for high-efficiency
rock penetration in mining, quarrying, and geotechnical applications.

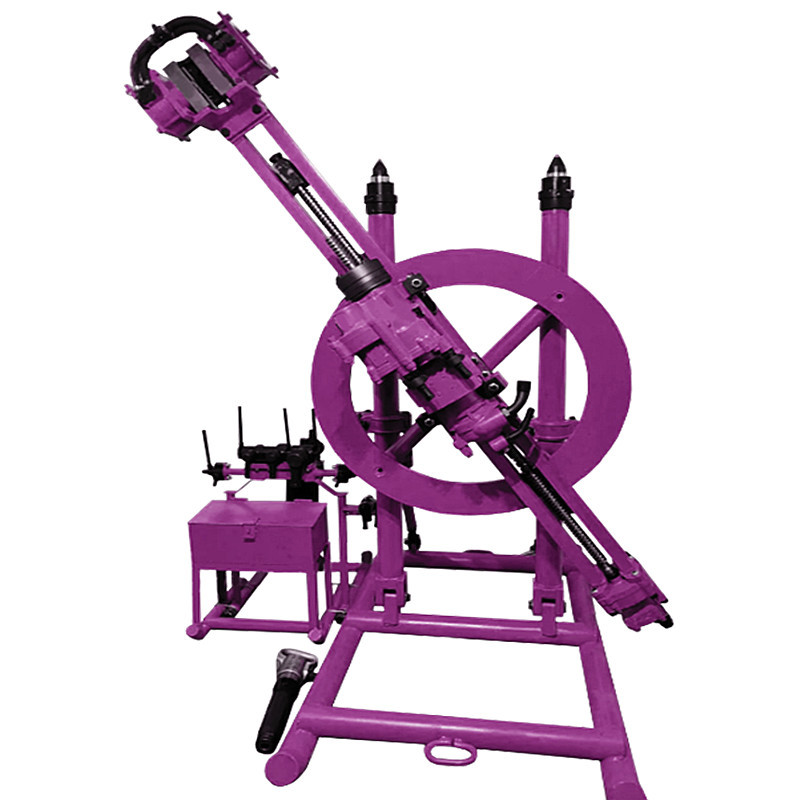

The 360° continuously rotating disc base enables omnidirectional drilling operations
without equipment repositioning.

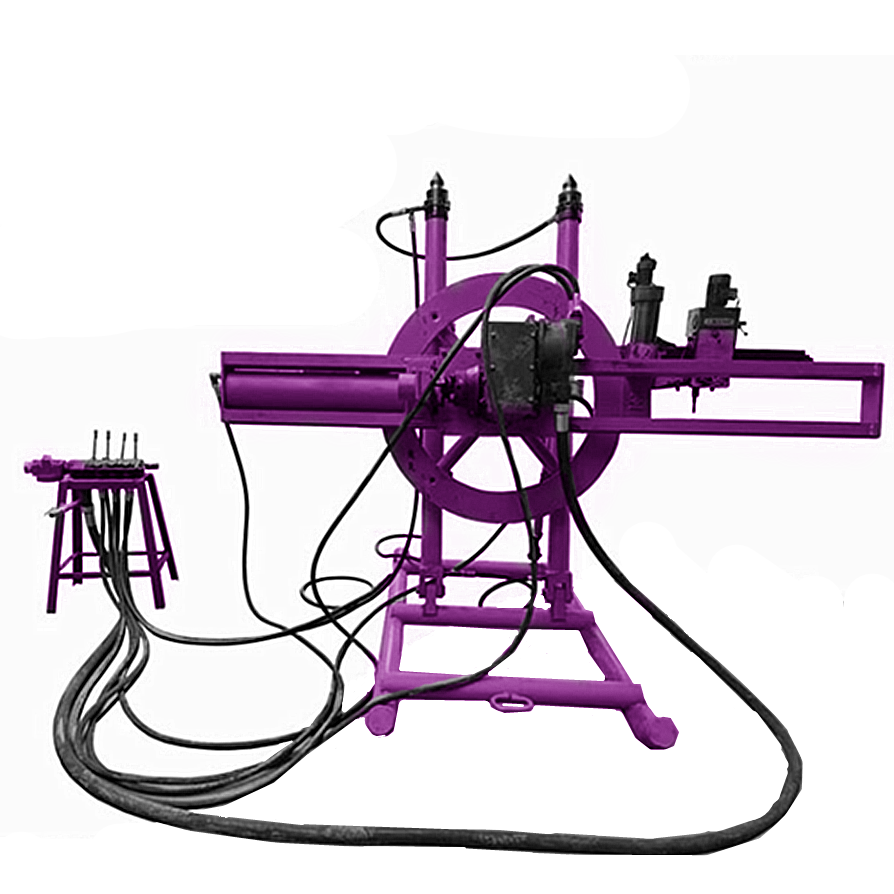

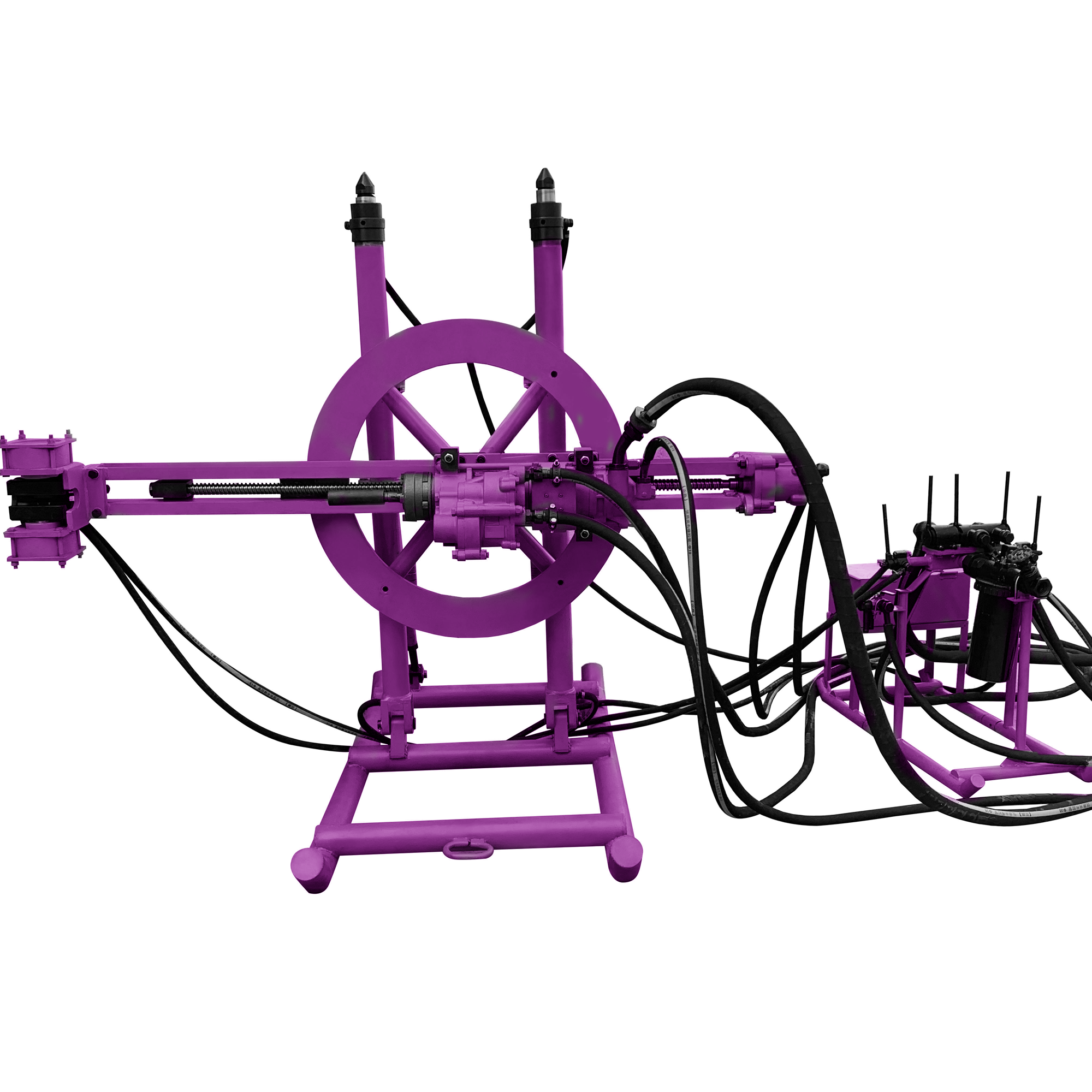

This drill frame has a simple structure, is easy to disassemble and transport, operates safely and reliably, and is highly efficient. The entire drilling frame is composed of three components: the drilling frame connection part, the propeller connection part and the operation platform connection part. The drilling frame connection part mainly includes three parts: the air top, the disc and the bottom skid. The propeller joint is composed of four components: the brazing device, the guide rail, the slide seat and the propulsion motor. The console assembly includes main components such as the control valve and the oil mist lubricator.
The sizes of different models of turntables are suitable for 2.2mx2.2m-2.7mx2.7m / 2.5mx2.5m-3.0mx3.0m
Products Description
|
Type
|
Rotary Drilling Rig
|
|
Product name
|
Drilling Rig
|
|
Applicable
|
Building Energy ,Mining,borehole drilling rig
|
|
|
Parameters
|
Model SR90
|
Model SR150
|
|
Drilling Hole Diameter
|
50-80mm
|
80-140mm
|
|
Max. Drilling Hole Depth
|
35m
|
180m
|
|
Shank Model
|
φ38mmx90mm
|
|
|
Impact Force
|
≥225J
|
15000N
|
|
Impact Frequency
|
≥34HZ
|
60rpm
|
|
Output Torque of Drill Rod
|
≥140NM
|
1500-2000NM
|
|
Workable Tunnel Dimensions
|
2.2m x 2.2m - 3.0m x 3.0m
|
2.2m x 2.2m - 3.0m x 3.0m
|
|
Total Air Consumption
|
≤225L/s
|
120-350L/s
|
|
Drilling Angles
|
0-360 degrees
|
0-360 degrees
|
|
Mounted
|
No (Man Portable)
|
Two Wheels Trailer
|
|
Weight for Rocks Drilling Machine
|
95KG
|
450KG
|
|
Dimensions for Rocks Drilling Machine
|
890x360x305mm
|
|
