The Diamond Coring Reverse Circulation Exploration Drill Rig is a advanced drilling system
designed for geological exploration and sampling. It utilizes diamond-impregnated drill bits
to achieve efficient and precise coring, enabling the extraction of high-quality core samples
from subsurface formations. The reverse circulation technology involves pumping drilling fluiddown the annulus of the drill string, which then carries cuttings back up through the inner pipe,
significantly reducing sample contamination and ensuring reliable data collection.
This rig is particularly suited for mineral exploration, geotechnical investigations, and environmental
studies, offering enhanced performance in a variety of challenging terrains.
Primary Features:
Superior Sample Quality and Integrity: The defining feature is its closed-loop system. Drill cuttingsare transported to the surface inside the inner tube of the dual-wall drill rods.
This minimizes contamination from the borehole walls or collapsing materials, providing highly
representative and uncontaminated samples from the target depth. Enhanced Drilling Efficiencyand Penetration Rates: By utilizing a down-hole hammer powered by high-pressure air, the RC rigachieves rapid penetration in hard rock formations. The air not only drives the hammer but alsoeffectively clears the cuttings, leading to faster drilling progress and reduced downtime.Continuous and Large-Volume Sampling: The system produces a continuous stream of coarse,
chipped samples. These samples are collected in large bags or drums at regular intervals (typically
every meter), creating a precise and reliable depth-correlated record of the subsurface geology.
This is just a part of the overseas clients who came to our company to negotiate cooperation, sign contracts and take photos.
We welcome more overseas clients to come to our company for negotiation and cooperation.
Product Description
|
Product name
|

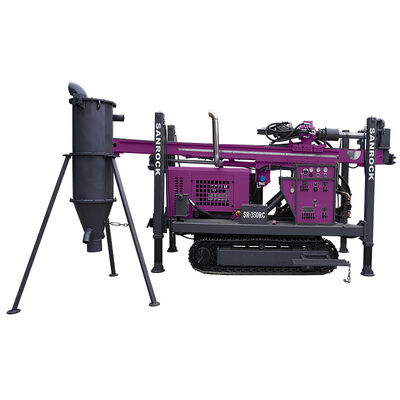

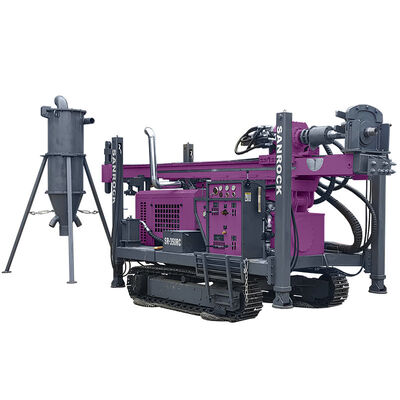

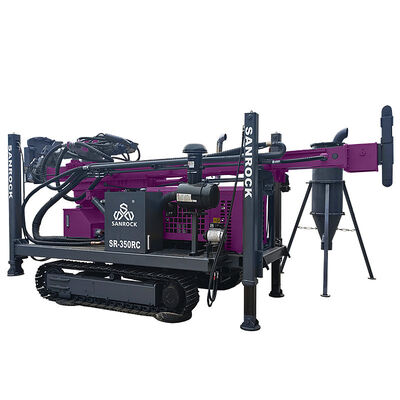

Reverse Circulation Drilling Rig
|
|
Model
|
SR-350RC
|
|
Drilling capacity
|
Drilling depth(m)
|
350
|
|
The hole diameter(mm)
|
105-400
|
|
Drill pipe diameter(mm)
|
76/89/102/114
|
|
Drill pipe length(m)
|
1.5/2/3
|
|
Axial pressure(kN)
|
100
|
|
Drive head
|
Rotation torque(N.m)
|
10000
|
|
Rotation speed(rpm)
|
40-160
|
|
Stroke(m)
|
3.3
|
|
Rig lifting force(kN)
|
260
|
|
Feeding capacity(kN)
|
130
|
|
Power Unit
|
Rated power/speed(kW/rpm)
|
129/2200
|
|
Tool winch capacity
|
Lifting force(kN)
|
15
|
|
Air compressor
|
Air pressure(MPA)
|
1.7-3.5
|
|
Air consumption(m³/min)
|
17-42
|
|
Equipped with hammer(Reverse circulation)
|
Medium and high pressure series
|
|
Crawler chassis
|
Walking speed(km/h)
|
2.5
|
|
Climbing angle(°)
|
30
|
|
Dimension
|
Transport(mm)
|
5900*2100*2500
|
|
Working(mm)
|
4200*3000*6100
|
|
Weight(t)
|
Weight(t)
|
8
|
|
Company Profile
1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control? A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
