Aperçu /Produits/Forage au noyau/Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig

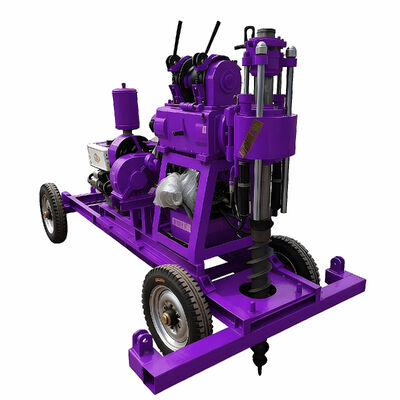

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig

1set / sets par mois
MOQ
negotiable
Prix
Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Nom du produit: équipement de forage hydraulique de noyau
Nom: Forage de forage de forage,forage du noyau
taper: Forage au noyau
Usage: échantillon de puits d'eau.
Fonctionnalité: Efficacité de forage élevée, portable, léger
Application: Exploration géologique
Pouvoir: 16.2kw
Vitesse nominale: 2200r / min
Diamètre de perçage: 75-325mm
Profondeur de forage: palette ou selon vos besoins
Diamètre de tige de perceuse: 42 à 60 mm
Dimension (l*l*h): 2700*900*1500 mm
Service après-vente assuré: Assistance en ligne
Poids de levage maximum de l'arbre vertical: 25KN
Pression d'alimentation maximale de l'arbre vertical :: 15kn
Couple de sortie maximum de l'arbre vertical: 15kn
Vitesse de l'arbre vertical (4ème vitesse): 71 142 310 620 tr/min
Déplacement vertical de l'arbre: 450mm
Angle d'immersion du trou: 90-75°
Diamètre du trou final: 75mm
Taille du paquet unique: 2150×880×1560 millimètres
Poids brut unique: 760 kg
Mettre en évidence:

hydraulic core drilling rig 100m

,

mining core drilling rig 200m

,

exploration drilling equipment hydraulic
Informations de base
Lieu d'origine: Zhejiang, Chine
Nom de marque: SANROCK
Certification: CE ISO 9001:2015
Numéro de modèle: SRC200
Conditions de paiement et expédition
Détails d'emballage: Emballage nu pour machines, emballage en boîte en bois pour pièces de rechange, ou demande du client
Délai de livraison: 15-25 jours
Conditions de paiement: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement: 5000set / sets par mois
Description de produit

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 0

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 1

Mining Exploration Geological Core Drilling Rig – 200m Depth
This heavy-duty core drilling rig is purpose-built for underground and open-pit mining exploration, geological surveying, and mineral resource evaluation, with a maximum drilling depth of 200 meters.

Engineered to withstand the harsh conditions of mine sites, the rig features a reinforced steel frame, dust- and moisture-resistant components, and a robust hydraulic system that ensures reliable operation in confined or rugged environments.
Equipped with a high-torque rotary head and precise feed control, it supports diamond core drilling (NQ, HQ, BQ) and delivers high-quality, undisturbed core samples for accurate geological analysis.

The compact modular design allows for easy transport through mine tunnels and quick setup at drilling locations. Safety features such as overload protection and emergency shut-off are integrated for operator protection.
Ideal for mineral prospecting, grade control, and geotechnical investigation in mining operations, this rig combines field-proven durability, efficient coring performance, and a 200-meter depth capability tailored to the demands of the mining industry.

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 2

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 3

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 4

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 5

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 6

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 7

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 8

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 9

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 10



Products Description

Brand Name:SANROCK
Product name :Core Drilling Rig

Name: Core Drilling Machine
Power Type :Diesel

Feature :High Drilling Efficiency,portable,Light Weight
Packaging Details:packing according to customer's requirement.

Model number:Diesel engine
Rated speed:2200r/min
Power:16.2KW
Borehole depth:200M
Pipe diameter:50mm
Opening diameter:75-325mm
Final hole diameter:75mm
Hole dip Angle:90-75°
Gyrator
Vertical shaft speed(4th gear):71,142,310,620 r/min
Vertical shaft travel:450mm
Maximum output torque of vertical shaft:15KN
Maximum feed pressure of vertical shaft:15KN
Maximum lifting weight of vertical shaft:25KN
Single package size:2150×880×1560 mm
Single gross weight:760 kg

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 11

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 12

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 13

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 14

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 15

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 16

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 17

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 18

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 19

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 20

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 4

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 22

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 23
