Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine

1 ensemble/ensembles
MOQ
negotiable
Prix
Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Type de puissance: Diesel
Nom: Le pilote de pile
Modèle de moteur :: 73,5KW /78KW
Type de moteur: Moteur diesel EFI six cylindres refroidi par eau
diamètre du trou: 90-160mm
Longueur de la tige: 3m
Diamètre de la tige: 60/64/76mm
Largeur de piste: 253mm
baseDéclaration: 420mm
Capacité de classement: 30°
Pression hydraulique: 18bar (haute pression)
Taux de rotation: Pour les véhicules à moteur à combustion
Max. couple de rotation: 3220Nm
Force d'alimentation: 6KN
Force de levage: 16kn
Coup d'alimentation: 4105 mm
Dimension (l*l*h): 5500*2100*2200mm
Poids: 5600kg
Mettre en évidence:

hydraulic drilling rig for photovoltaic piles

,

flexible angle adjustment pile driver

,

anchor piling rig with hydraulic system
Informations de base
Lieu d'origine: Zhejiang, Chine
Nom de marque: Sanrock
Certification: IOS9001 CCC
Numéro de modèle: SRP160A
Documents: Pile Driver and Rotary Dril...ig.pdf
Conditions de paiement et expédition
Détails d'emballage: dans une boîte en bois, puis dans un conteneur de mer
Délai de livraison: 15-25 jours
Conditions de paiement: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement: 1000 ensembles / sets par mois
Description de produit

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 0

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 1

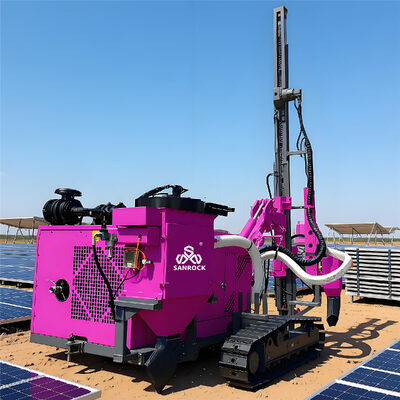

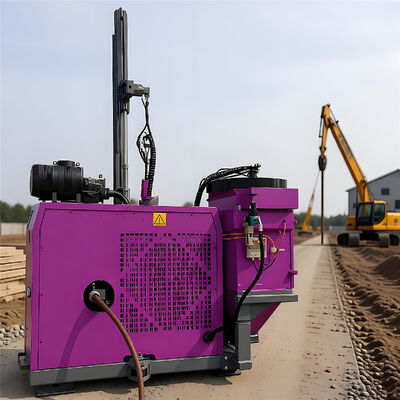

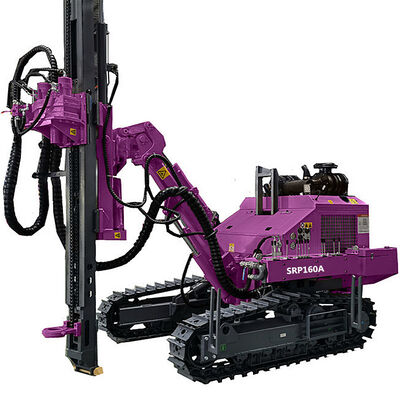

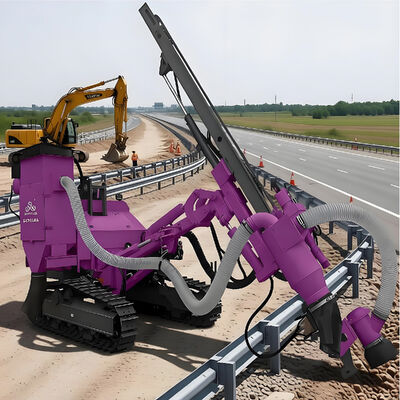

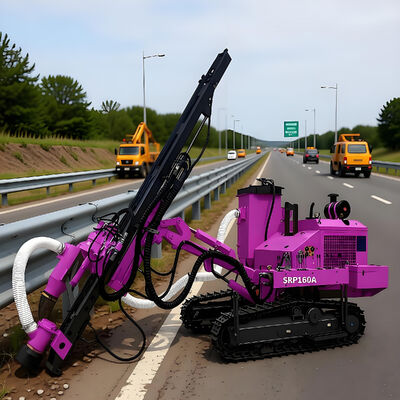

This anchor pile drilling rig is a dedicated hydraulic piling machine for photovoltaic power station foundation construction. It is designed for drilling anchor holes and installing ground anchor piles to fix solar panel brackets efficiently. Featuring a crawler chassis and adjustable drill mast, it adapts to farmland, hills, gravel and mixed soil terrain, supporting fast vertical and inclined drilling. It greatly improves the speed of solar foundation installation, ensures firm fixation of photovoltaic supports, and is widely used in large-scale photovoltaic farm projects and new energy ground anchoring construction.
Photovoltaic anchor pile drilling rig, specially developed for solar farm foundation anchoring works. Crawler mobile design, multi-angle adjustable drilling structure, suitable for various complex terrains. It quickly completes solar anchor pile drilling and fixing, providing stable foundation support for photovoltaic bracket systems and improving overall construction efficiency.
Photovoltaic anchor pile drilling rig, crawler hydraulic type, for photovoltaic power station ground anchor pile construction and solar bracket foundation fixing.

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 2


Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 3

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 4

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 5

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 6

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 7

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 8

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 9

Products Description

Brand Name:SANROCK
Product Name:Pile Driver
Engine Model: 73.5KW /78KW
Engine Type:Water-cooled six-cylinder EFI diesel engine
Rated power:73.5/2200Kw/RPM,78/2200Kw/RPM
Drill rod changer
Hole diameter :90-160mm
Rod length:3m
Rod diameter:60/64/76mm
Rod quantity:7
Dust collector :Dry tydraulic dust collecting method (Wet type optional)
Undercarriage
Track width :253mm
Groundclearance :420mm
Track oscillation :±10°
Walking speed :low 2, high 3 km/h
Grade ability:30°
Hydraulic system
Hydraulic pressure :18bar (high pressure)
Rotation motor
Rotation rate :0-140rpm
Max. rotation torque :3220Nm
Feeding method  Cylinder plus chain
Feeding force :6KN
Lifting force :16KN
Feeding stroke :4105mm
Promote compensation :1250mm
Dimension(L*W*H):5500*2100*2200mm
Weight:5600kg

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 10

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 11

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 12

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 13

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 14

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 15


Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 16


Company Introduction

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 17

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 18

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 19

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 20

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 21




Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 22

Anchor Piling Rig FIexible Angle Adjustment Hydraulic Drilling Rig Photovoltaic Pile Driver Machine 23

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.What can you buy from us?
DTH drilling rig  Integrated DTH DTH drilling rig  water well drilling rig  truck mounted water well drilling rig core drilling rig  reverse circulation drilling rig  highway pile driver  solar pile driver   anchor pile driver   rotary drill rig  Top Hammer drill rig Underground jumbo drill rig  DTH hammer  screw air compressor  piston air compressor  pneumatic rock drill   drill rod   drill bit   PDC drill bit   top hammer drill bit   tricone bit  spare parts
3.How is the shipment?   How long dose it take?
 A: For large quantity or heavy products, we ship by sea shipping or land shipping.   Shipping efficiency depends on country and city you want to ship to.   For small and delicate products, we ship by DHL, UPS, Fedex or TNT.  You can also appoint shipping method you like before we ship.
 4.How is your quality control?
A: We have our own experienced QC.  There will be strict inspection and testing for every order before shipping out.
